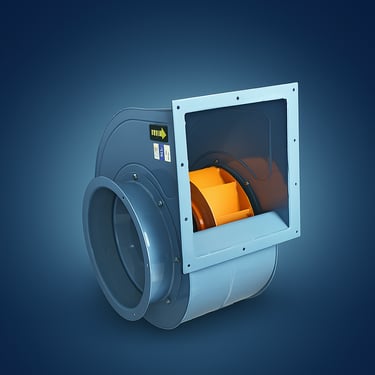

CBI/A Fans
Centrifugal single-inlet medium-pressure fans fitted with a backward-curved impeller that includes a self-cleaning system, especially designed for painting booths.
Fan:
Steel sheet casing
Impeller with backward-curved blades made from sheet steel
Inspection hatch
Motor:
Motors with IE-2 efcfiency, except for motors with lower powers than 0.75 kW and single-phase motors.
Class F motors, with bearings, IP55 protection.
Three-phase 230/400V.-50Hz. (up to 5.5CV.)
Max. air temperature to transport: -20ºC.+ 120ºC
Finish
Anticorrosive finish in polyester resin, polymerised at 190ºC, after alkaline degreasing and phosphate-free pretreatment.
On request:
Special windings for different voltages.
ATEX certification, Category 2
