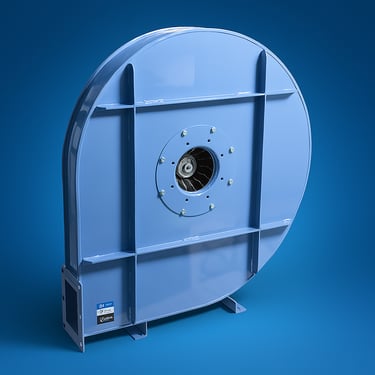

CHP Fans
Centrifugal single-inlet, high-pressure fans with casing and sheet steel impeller.
Fan:
Steel sheet casing
Impeller with backward-facing blades made from galvanised sheet steel, except models 242-248-254-260 640-645-650 which have a cast aluminium impeller.
Motor:
Motors with IE-2 efficiency, except for motors with lower powers than 0.75 kW and single-phase motors.
Class F motors, with bearings, IP55 protection
Three-phase 230/400V.-50Hz. (up to 5.5 HP) and 400/690V.-50Hz. (power over 5.5 HP)
Max. air temperature to transport: -20℃ + 120℃
Finish:
Anticorrosive finish in polyester resin, polymerised at 190℃, after alkaline degreasing and phosphate-free pre-treatment.
On request:
Special windings for different voltages
Fan designed to transport air up to 250℃
Stainless steel fans
ATEX certification, Category 2
