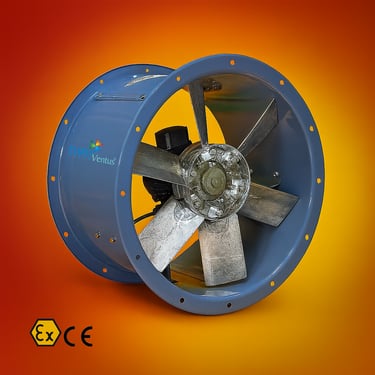

XCT
Short & Long casing axial fans for working inside fire danger zones.
Category: Axial Fans
Tag: Axial fans
Short & Long casing axial fans for working inside fire danger zones.
XCT/ATEX: with ATEX certification, category 3 Ex II3G. In accordance with Spanish Low Voltage Regulation Itc 29 ATEX for Zone 2 rated car parks.
Fan:
Sheet steel short casing. XCT/ATEX: with aluminium strip in the impeller area in accordance with Standard EN-14986:2005.
Turn able cast aluminium impellers.
Approval according to Standard EN-12101-3-2002.
Airflow direction from motor to impeller.
Motor:
Class H motors, ongoing use S1 and emergency use S2, with ball bearings, IP55 protection, and one or two speeds depending on the model.
Three-phase 230/400V.-50Hz. (up to 4 HP) and 400/690V.-50Hz. (power over 4 HP)
Max. temperature of air for transport: S1 Service -20℃+ 40℃ for ongoing use, S2 Service 200℃/2h, 300℃/2h, 400℃/2h
Finish:
Anticorrosive finish in polyester resin, polymerised at 190℃, after alkaline degreasing and phosphate-free pre-treatment
On Request:
Long casing fans with inspection hatch
100% reversible impellers
