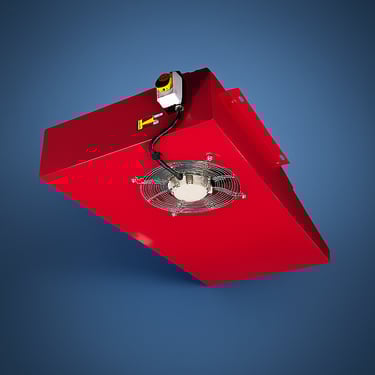

PJF-CI Fans

Centrifugal long-range induction and jet fans 300℃/2h and 400℃ /2h, for working within the fire danger zones, with low profile.
Fan:
Steel sheet casing
Impeller with backward-curved blades made from robust sheet steel
Outside connecting box.
Fixing stand included
Motor:
Class H motors, ongoing use S1 and emergency use S2, with ball bearings, IP55 protection, and one- or two- speed depending on the model
Three-phase 230/400V.50Hz
Max. air temperature to transport: S1 Service -20℃ + 40℃ for ongoing use, S2 Service 300℃/2h and 400℃/2h
Finish:
Anti-corrosive finish in polyester resin, polymerised at 190℃ after phosphate free pre-treatment (PJF-C) or anti-corrosive galvanised sheet steel (PJF-L)
On request:
Anti-corrosive finish in polyester resin, polymerised at 190℃ after phosphate free pre-treatment
