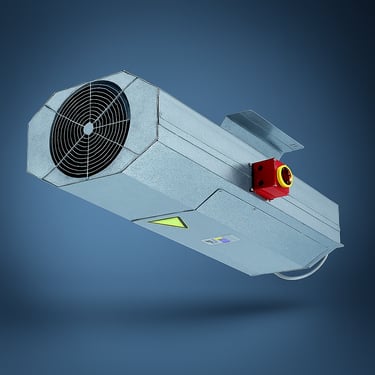

PJF-L Fans
200℃/2h, 300℃/2h and 400℃/2h single-direction or reversible long-range jet fans with circular, (PJF-C) or octagonal (PJF-L) design
Fan:
Single-direction or reversible ventilation unit consisting of a fan, silencers, deflectors and brackets, certified for smoke extraction in accordance with standard EN-12101-
3:2002/AC:2006, certification no. 0370-CPR-0394
Turn able impellers in cast aluminium designed for optimum thrust.
Protection guard against contacts, in accordance with standard UNE-EN ISO 12499:2010, in single-direction models
Deflector to increase airflow range, on the impeller side. Reversible models are fitted with deflectors on both sides.
Highly effective silencers with thermal and acoustic insulation
Safety switch, IAT series, supplied built-in to the fan (PJF-L) or on request (PJF-C)
Airflow direction from motor to impeller or 100% reversible
PJF-C: Steel sheet circular casing
PJF-L: galvanised sheet steel casing
PJF-O: painted steel casing
PJF-LS: Casing length limited
Motor:
Class H motors, ongoing use S1 and emergency use S2, with ball bearings and IP55 protection, 2-speed
Three-phase 400V.-50Hz. DHALANDER
Max. air temperature to transport: S1 Service -200℃ + 400℃ for ongoing use, S2 Service 2000℃ /2h, 3000℃ /2h, 4000℃ /2h
Finish:
Anti-corrosive finish in polyester resin, polymerised at 190℃ after phosphate free pre-treatment (PJF-C) or anti-corrosive galvanised sheet steel (PJF-L)
On request:
Different thrust performance from that indicated
