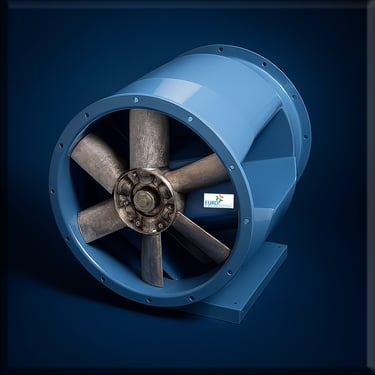

XBF Fans
Forked tubular fans for moving air of up to 150℃ continuously and up to 200℃ sporadically.
Category: Axial Fans
Tag: Axial fans
Forked tubular fans for moving air of up to 150℃ continuously and up to 200℃ sporadically.
Fan:
Sheet steel tubular casing.
Impeller made from cast aluminum
Airflow direction from impeller to motor
Motor:
Single-phase two-speed motors with IE-2 efficiency, except lower powers 0.75 kW.
Class F motors with ball bearings, IP-55 protection
Three-phase 230/400V.-50Hz. (up to 5.5 HP) and 400/690V.-50Hz. (power over 5.5 HP)
Working temperature: -25℃+ 150℃
Finish:
Anticorrosive with heat-protection paint for working in hot environments
On Request:
Casing made from stainless steel
Hot galvanized finish
Special windings for different voltages and motors with PTC
