XCF Fans

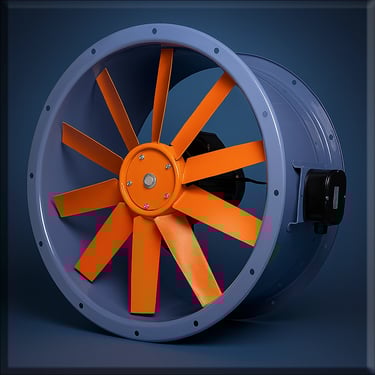

Duct mounted axial or long-cased fans XCF Duct mounted axial or long-cased fans, PL version supplied with plastic impeller and AL version supplied with aluminum impeller.
Category: Axial Fans
Tag: Axial fans
Duct mounted axial or long-cased fans XCF Duct mounted axial or long-cased fans, PL version supplied with plastic impeller and AL version supplied with aluminum impeller.
Fan:
Airflow direction from motor to impeller
PL version impellers in polyamide reinforced with fiberglass and AL version in cast aluminum
Sheet steel long casing with external terminal board
Motor:
Single-phase two-speed motors with IE-2 efficiency, except lower powers 0.75 kW.
Class F motors, with ball bearings and IP55 protection, except single-phase versions from size 45 to size 56, IP54 protection. One-or two-speed depending on the model
Single-phase 230V -50Hz. and three-phase 230/400V.50Hz (up to 5.5 HP) and 400/690V.-50Hz. (power over 5.5 HP)
Working temperature: -25℃+ 50℃
Finish:
Anticorrosive finish in polyester resin, polymerized at 190C, after alkaline degreasing and phosphate-free pre-treatment
On Request:
Airflow direction from impeller to motor.
100% reversible impellers
Special windings for different voltages
ATEX certification, Category 2
