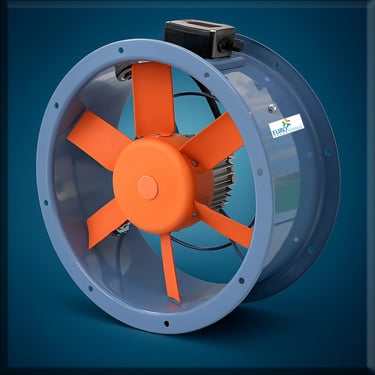

XCF/65 Fans
Long-cased axial fans with fiberglass reinforced plastic impeller.
Category: Axial Fans
Tag: Axial fans
Long-cased axial fans with fiberglass reinforced plastic impeller.
Fan:
Airflow direction from motor to impeller
Impeller in polyamide 6 reinforced with fiber glass
Sheet steel tubular casing.
Outside connecting box, IP-65 protection
Motor:
Class F motors with ball bearings, IP-65 protection
Single-phase 220-240V.-50Hz. and three-phase 220-240/380-415V.-50Hz.
Working temperature: -25℃ +60℃, 4-6-8 poles motors and -25℃ +45℃, 2 pole motors
Finish:
Anticorrosive finish in polyester resin, polymerized at 190℃, after alkaline degreasing and phosphate-free pre-treatment
On Request:
Airflow direction from impeller to motor.
Special windings for different voltages
