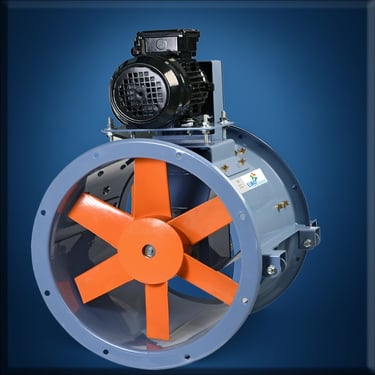

XLX Fans
Long cased axial fans with external motor.
Fan:
Long casing with sheet steel twist-lock cap.
Impellers made from cast aluminium
Sealed transmission unit (IP66) with double retention system
Airflow direction from motor to impeller
Motor:
Single-phase two-speed motors with IE-2 efficiency, except lower powers 0.75 kW.
Class F motors, with bearings, IP55 protection.
Single-phase 230V. -50Hz. and three phase 230/400V.-50Hz. (up to 5.5CV.) and 400/690V.-50Hz. (power over 5.5CV.)
Working temperature: -25℃ + 150℃
Finish:
Anticorrosive finish in polyester resin, polymerized at 190℃, after alkaline degreasing and phosphate-free pre-treatment
On Request:
Airflow direction from impeller to motor
100% reversible impellers.
Special windings for different voltages
ATEX Certification, category 2 (see XLX/ATEX series)
