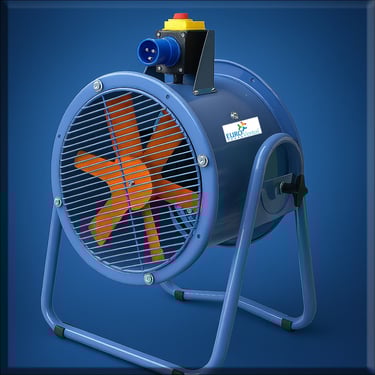

XMF Fans
Mobile fans with possibility of directing airflow.
Fan:
Sheet steel tubular casing. Impeller
Impeller in polyamide 6 reinforced with fibre glass
Protection guard against contacts, in accordance with standard UNE 100250, on both sides
Connection box with start-stop switch that can be rearmed manually to avoid switching the fan on accidentally (ISO 12100-2)
Airflow direction from motor to impeller
Motor:
Single-phase two-speed motors with IE-2 efficiency, except lower powers 0.75 kW.
Class F motors, with ball bearings and IP55 protection, except single-phase versions from size 35 to size 56, IP54 protection. Single
Single-phase 230V.-50Hz., and three-phase 230/400V.-50Hz.
Working temperature: -25℃ + 50℃
Finish:
Anticorrosive finish in polyester resin, polymerized at 190℃, after alkaline degreasing and phosphate-free pre-treatment
On Request:
Airflow direction from impeller to motor
100% reversible impellers.
Special windings for different voltages
ATEX Certification, category 2
