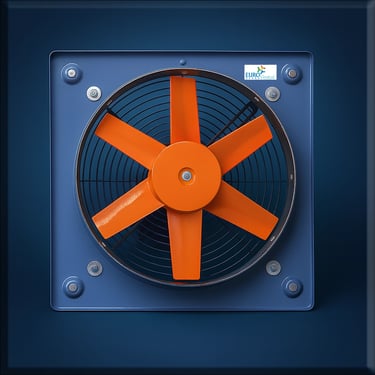

XWF Fans

Axial wall mounted fans with plastic fibreglass-reinforced impeller,

Category:

Tag:

Description

Axial wall mounted fans with plastic fibreglass-reinforced impeller, with a flat base to mount on the roof.

Fan:

  • Sheet steel base plate.

  • Impeller in polyamide reinforced with fibre glass

  • Protection guard, meets UNE 100250 standard

  • Airflow direction from motor to impeller

Motor:

  • Single-phase motors with IE-2 efficiency, except lower powers 0.75 kW.

  • Class F motors, with ball bearings and IP55 protection, except single-phase versions from size 45 to size 63, IP54 protection, one- or two-speed depending on request.

  • Single-phase 230V -50Hz. and three-phase 230/400V.50Hz.(Deference volts Hz upon request) and 400/690V.-50Hz. (power over 5.5 HP)

  • Working temperature: -25℃ + 60℃

Finish:

Anticorrosive finish in polyester resin, polymerized at 190℃, after alkaline degreasing and phosphate-free pre-treatment

On Request:

  • Motor, impeller and guard unit (version F)

  • Motor-impeller unit, version G.

  • Airflow direction from impeller to motor.

  • Special windings for different voltages.
