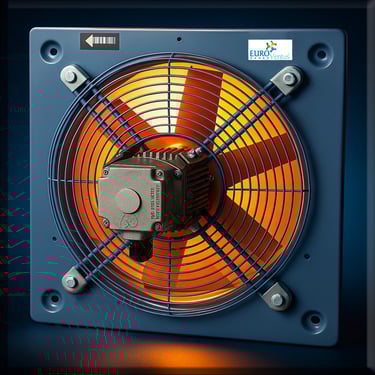

XWF-ATEX

Wall-mounted axial fans with ATEX certification and possible Ex e, Ex d, Ex tc and Ex tb markings

Category:

Tag:

Description

Wall-mounted axial fans with ATEX certification and possible Ex e, Ex d, Ex tc and Ex tb markings

Fan:

  • Impeller made from cast aluminium

  • Airflow direction from motor to impeller

  • Stuffing-box spark-proof included

  • Protection guard against contacts, in accordance with standard UNE-EN ISO 12499:2010 included in models 25 to 63, other models as accessory.

  • Support frame in sheet steel with aluminium strip in the impeller area in accordance with Standard EN 14986:2007

Motor:

  • Class F motors with ball bearings and ATEX certification, Ex e explosion-proof and Ex d, Ex tc, or Ex tb flame resistant

  • Three phase, 50Hz, 230/400V motors up to and including 4kW. 400/690V over 4kW

  • Fan working temperature: -20℃ + 40℃

Finish:

Rust retardant finish with ATEX paint, containing no ferrous components, in polyester resin polymerised at 190°C, after phosphate free pre-treatment

On Request:

  • Built-in motors with PTC

  • Special windings for different electrical supplies and frequencies

  • ATEX construction for different categories

  • Fans with two-speed motor.

  • Ex d flame-resistant single-phase motors
